Since the late seventies the doors of TAROX have been open to customers far and wide looking for Bespoke brake discs. In this time we have seen many wonderful vehicles, from true icons such as the Lamborghini Miura and Diablo to the Nissan GTR, with many performance cars and exotica in-between.

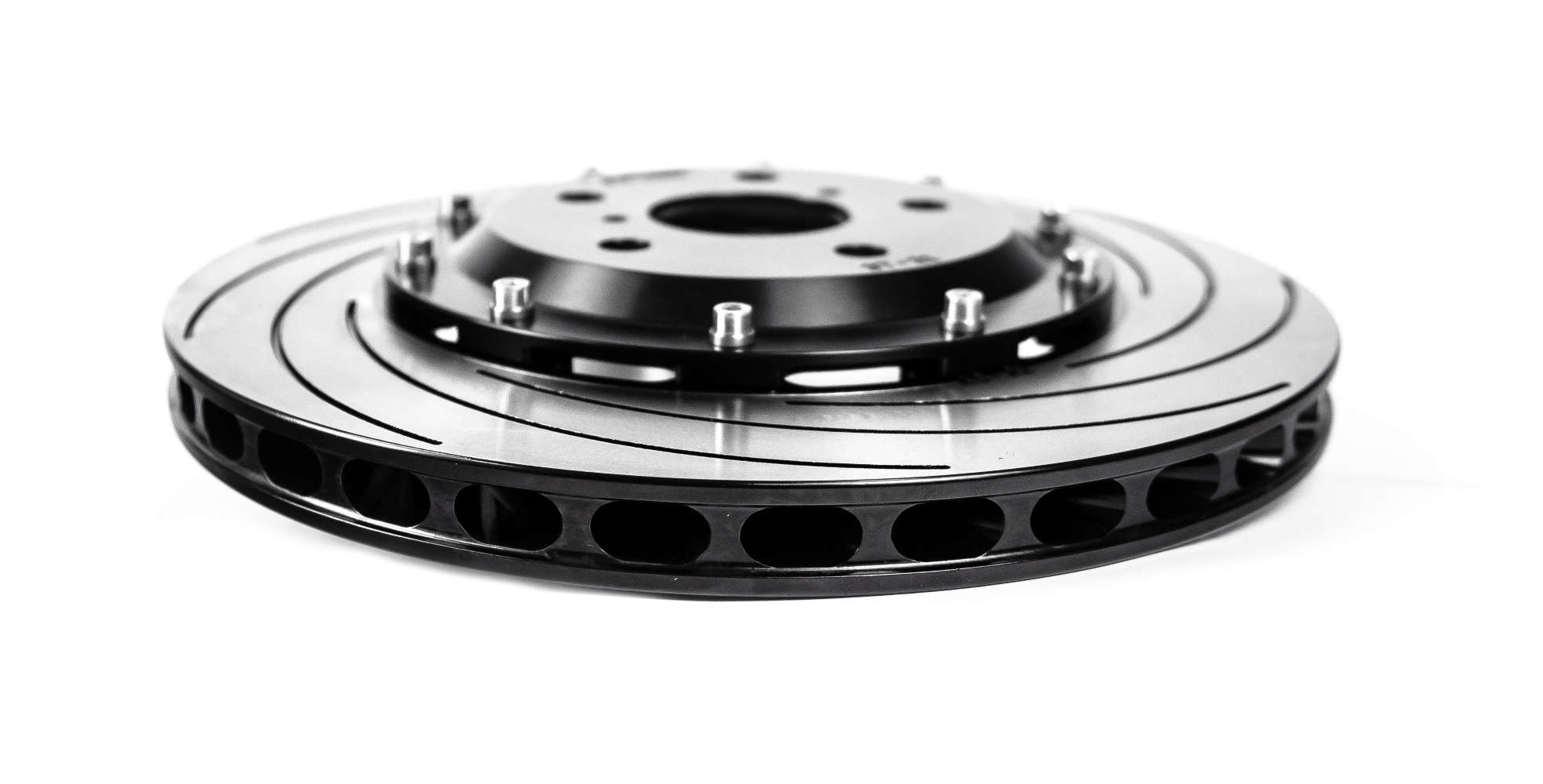

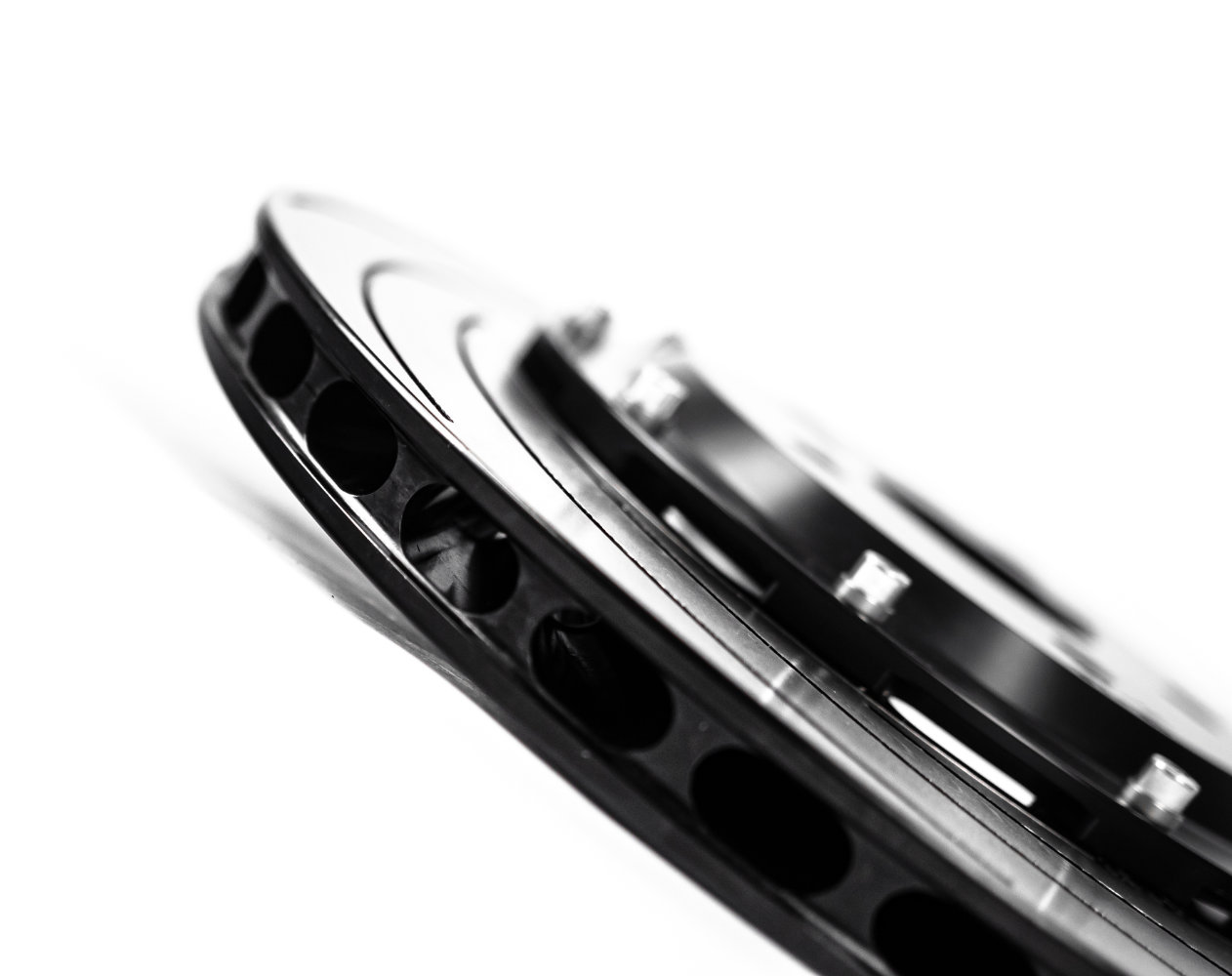

Using only the finest materials, each TAROX Bespoke disc is machined from a solid billet of high-quality European steel, which is then heat treated for extra strength. Using CNC technology, each slice of billet is machined into the exact dimensions required to ensure a perfect fit for each application. Vented discs are manufactured with curved internal ventilation, utilising 20 directional ‘venturi’ vanes which accelerate hot gasses and aid heat dissipation. Composite brake discs that require a two piece configuration receive a hub section machined from billet aluminium which we hard anodise for protection from the elements.

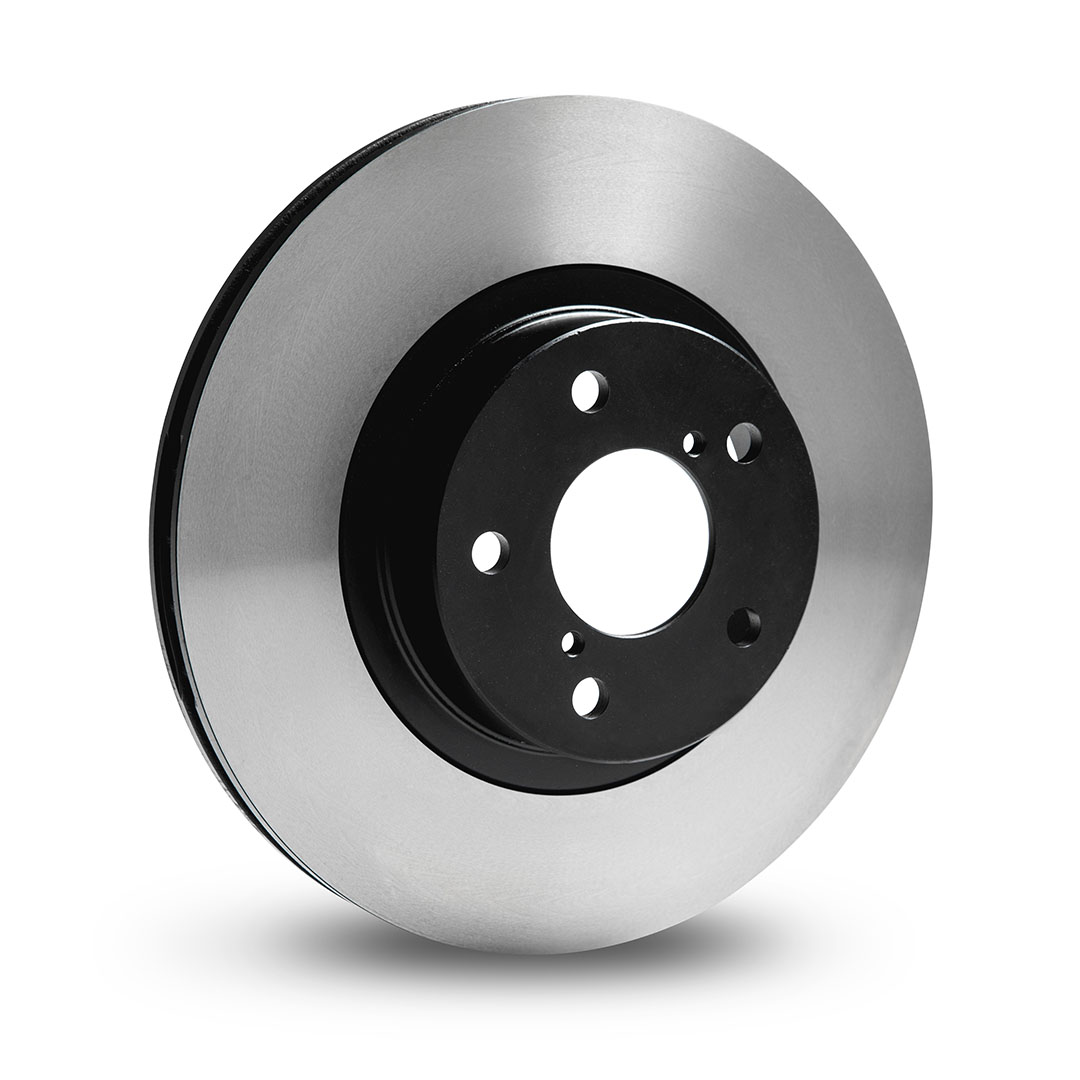

TAROX Bespoke discs destined for classic marques are often produced in a traditional single piece configuration to maintain the original aesthetic of the vehicle. Furthermore, the facings of the discs can be specified without grooves or holes for a truly OE look, perfect for concours vehicles. More modern vehicles, and vehicles with enhanced levels of performance, will receive a TAROX designed two piece version of the original manufacturers brake disc. Fixed, semi-floating, and fully-floating configurations are all carefully considered during the design process to maximise suitability and performance for each application. The use of billet aluminium for the hub section of the discs results in a product that is not only stronger than the OE equivalent but also lighter. This is beneficial not just to braking, but also to cornering, acceleration, and fuel consumption.
Every single TAROX brake disc undergoes a series of heat treatments between each machining stage. This special process aligns the structure of the metal and is proven to increase the longevity and stability of the disc. An optional special anti corrosion coating can be applied to the disc using a special electronically controlled application method. This special resin based coating is the same product used by car manufacturers on chassis components and protects all of the unswept areas of the disc from the elements. The final stage of manufacturing polishes and balances the disc on special in house machinery which creates a perfectly flat braking surface with a tolerance approaching 0.015mm. This process reduces bedding in times and gives the disc that special unique TAROX shine.

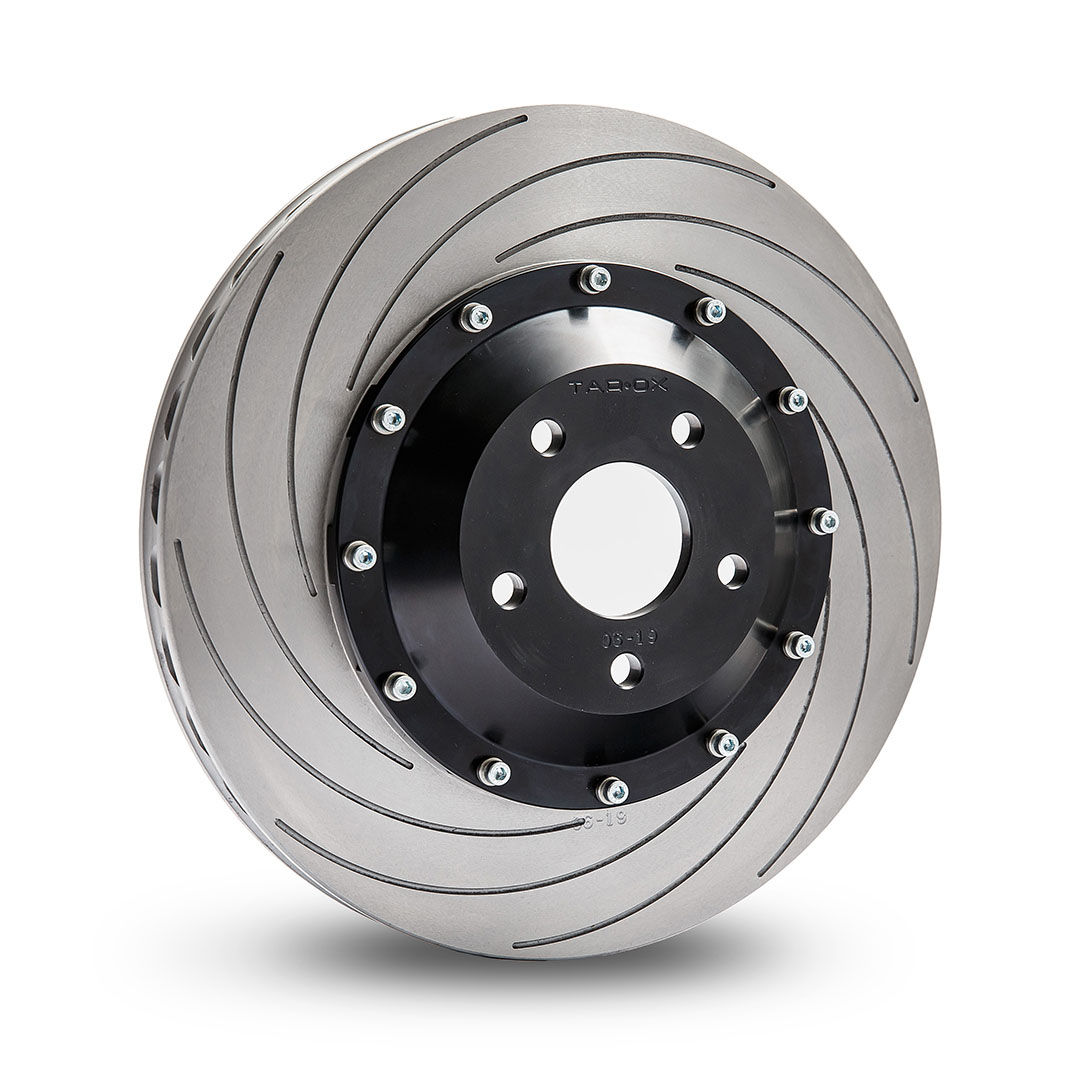

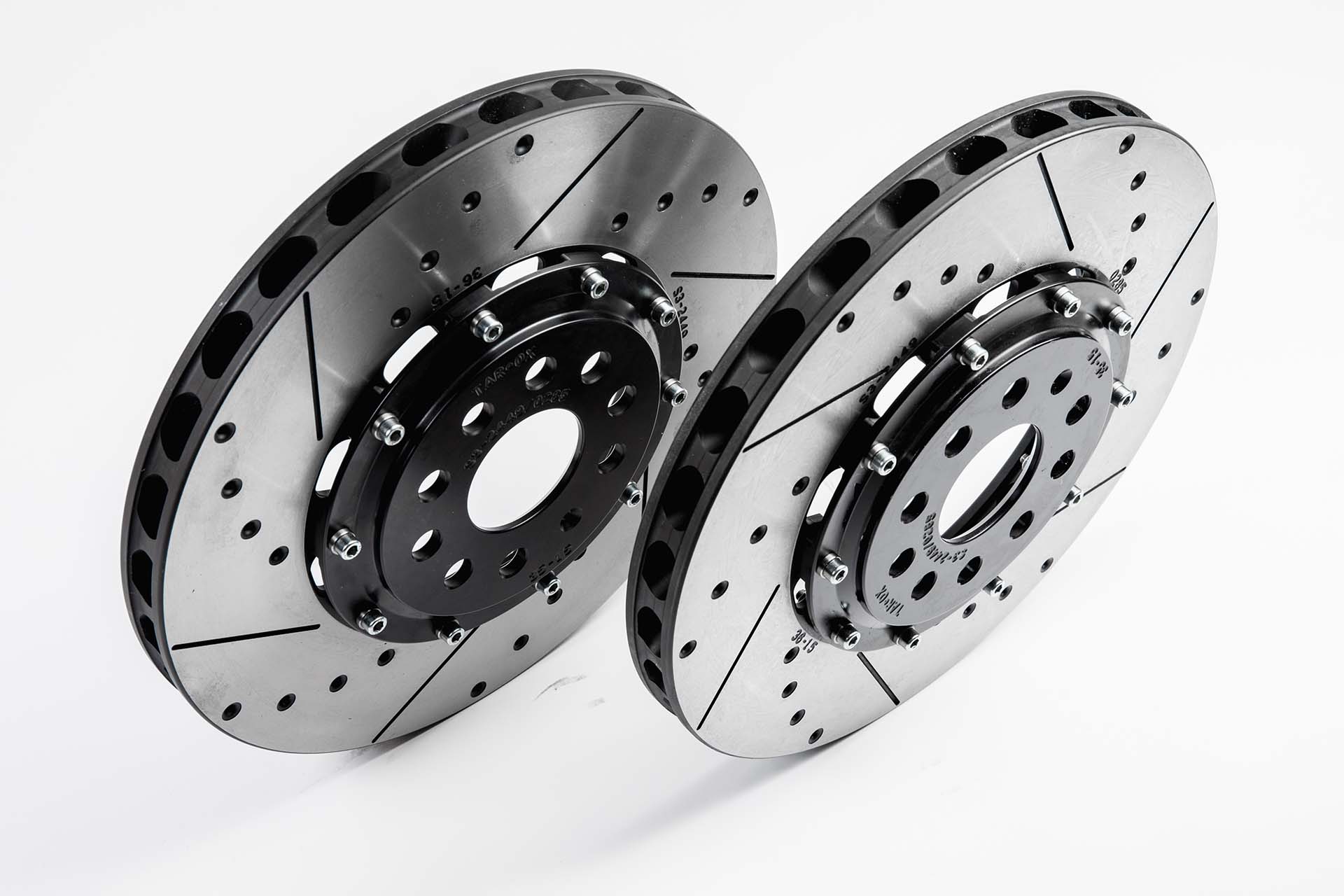

TAROX floating brake discs use stainless steel bobbins to allow the working rotor section of the disc to expand and contract independently of the hub section. Our semi-floating arrangement, as used on most road applications, allows the rotor to expand and contract radially, reducing the possibility of warping and helping to mitigate heat transfer to vital vehicle components such as wheel bearings and CV joints. Our fully floating arrangement allows for lateral axial movement in addition to radial expansion. This feature reduces brake pad ‘knock off’ for a more immediate pedal response – ideal for cars driven in competition.
For both systems we engineer the ‘float’ into the harder wearing steel part of the disc rather than the softer aluminium bell section like many competitor products. This increases the lifespan of the alloy hubs allowing you to re-use them once the rotors have worn out.
TAROX bespoke discs allow you to drive harder. The use of semi-floating hard anodised bells and curved Venturi ventilation saves weight and cools better. This crucial reduction in un-sprung weight and improved cooling allows you to turn sharper, accelerate quicker, and stop faster. The use of stronger metals not only improves performance but also increases longevity.
